N26 5.5KW 48V Parallel Hybrid Inverter
R 25,934.00
The N26 5.5KW 48V Parallel Hybrid Inverter is presented as an all-in-one solar charge inverter for 48V battery systems. The supplied product label states a rated power of 5500W, 48V battery voltage and up to 6000W PV input.
A hybrid inverter combines inverter and solar charging functions to manage power between solar panels, a battery bank and compatible AC electrical sources. The supplied unit includes an integrated display and is labelled for 48V DC battery systems.
Key Features
- 5500W rated power → The product label states a rated power of 5500W for the inverter.
- 48V battery system → Designed around a stated 48V DC battery voltage.
- 6000W maximum PV input → The product label states a maximum PV input power of 6000W.
- 500V maximum PV open voltage → The label states a maximum PV open-circuit voltage of 500V.
- Integrated solar charging → Combines solar charging functionality with inverter operation in one unit.
- AC input support → The label specifies an AC input voltage range of 170–280Vac and 50Hz/60Hz frequency.

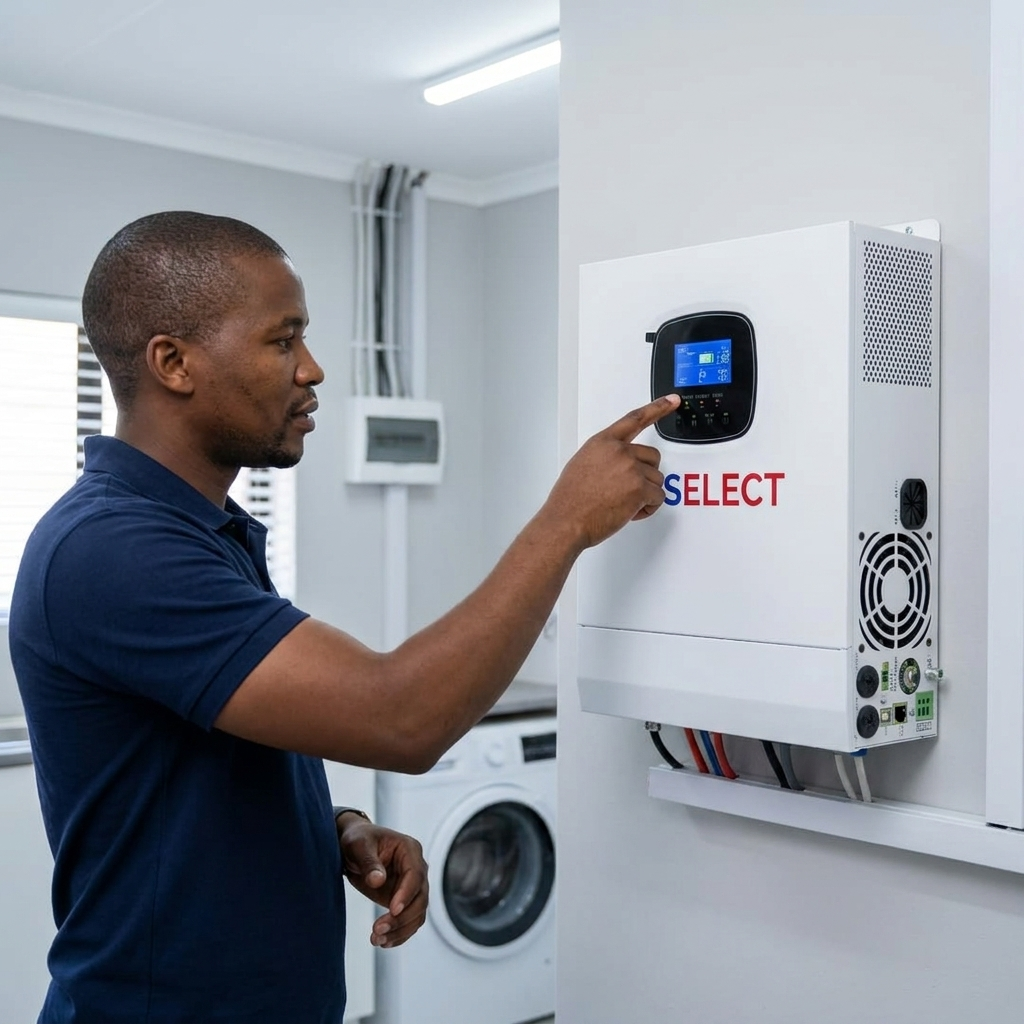

- Integrated display → Provides a built-in screen and control buttons for viewing and managing available inverter settings.
Specifications
| Specification | Details |
|---|---|
| Product Type | Hybrid Solar Inverter |
| Original Product Branding | HOSELECT |
| Model Name on Label | HS-5500 |
| Rated Power | 5500W |
| Battery Voltage | 48V DC |
| Battery Input Voltage Range | 40–60V DC |
| Rated AC Output Voltage | 230Vac ±5% |
| Rated AC Output Current | 24A |
| AC Input Voltage Range | 170–280Vac |
| AC Input Frequency | 50Hz / 60Hz |
| Maximum AC Bypass Current | 40A |
| Maximum AC Charge Current | 60A |
| Maximum PV Input Power | 6000W |
| Maximum PV Open Voltage | 500V |
| PV MPPT Input Voltage Range | 120–450V DC |
| Maximum PV Input Current | 22A |
| PV Output Maximum Power | 5500W |
| Maximum PV Charge Current | 100A |
| Operating Temperature | -10°C to 55°C |
| IP Grade | IP20 |
| Safety Class | I |
| Display | Integrated display |
What's in the Box
- 1 × N26 5.5KW 48V Parallel Hybrid Inverter
